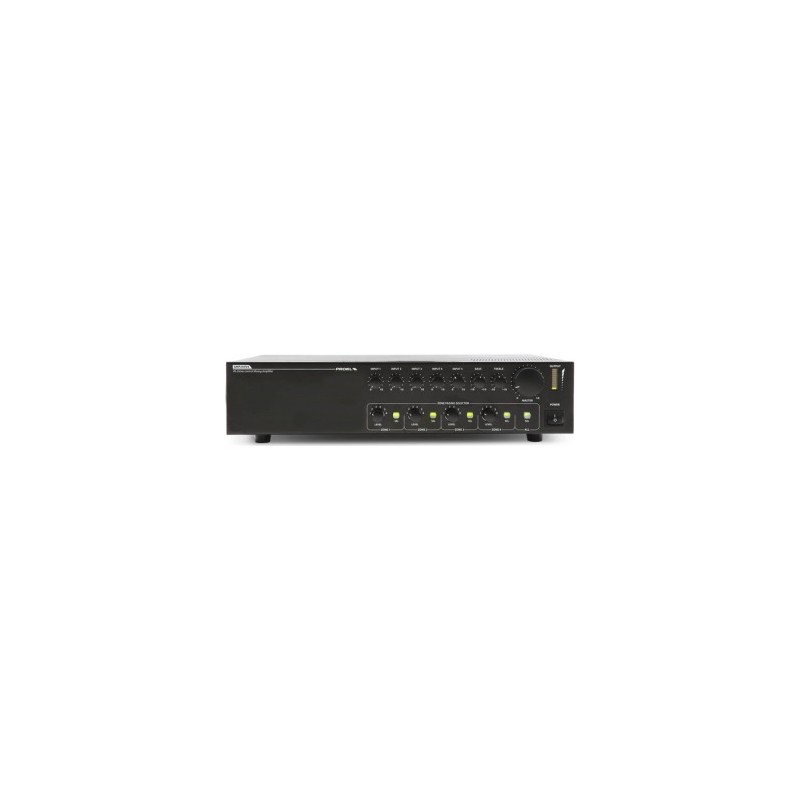

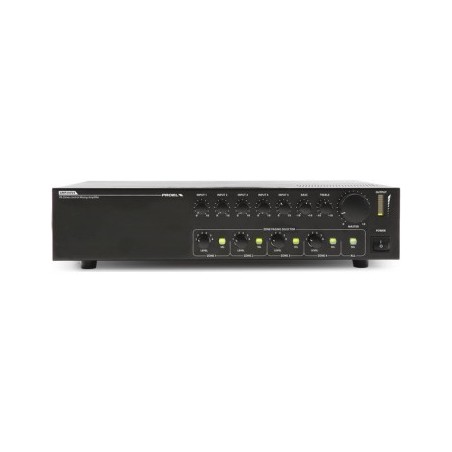

Amplificatore Mixer A Quattro Zone 240W ( PROEL cod. PA AMP240V4 )

Output power RMS: AC 240W – DC 165W Inputs: 4x MIC/LINE balanced | 1x AUX (CD/TAPE/TUNER/AUX IN selectable) | 1x MAIN IN (normally connected to PRE OUT) | 1x TELEPHONE/EME RGENCY Input Sensitivity: MIC: -52dBV / 600 ohm balanced (with 24V phantom) | LINE: -10dBV / 100 Kohm balanced | AUX: -20dBV / 47 Kohm unbalanced | MAIN IN: 0dBV / 10Kohm unbalanced | TELEPHONE/EMERGENCY: Variable gain - 600 ohm Signal Output: PRE OUT (normally connected to MAIN IN) Output Levels: PRE OUT: 1V / 600 ohm | MOH 0dBV 600 ohm Variable level Controls: 1 MASTER VOLUME CONTROL | 4 MIC/LINE VOLUME CONTROLS, | 1 AUX VOLUME CONTROL | 1 TREBLE TONE CONTROL | 1 BASS TONE CONTROL | 4 ZONE VOLUME CONTROLS | 4 ZONE SELECTORS Loudspeakers outputs: 100/70/25V -16/8/4 ohm | Z1÷Z4: 100V | MOH: 1W -8 ohm Variable level Frequency response: 80Hz – 16KHz (-3dB) Distortion (THD): < 1% (@ Pnom 1KHz) S/N Ratio: MIC: >=dB | LINE: >=75dB | AUX: >=80dB Power Supply: 220V ac – 117V ac 50/60Hz | 24V dc 20A Operating temperature: 0 -40ºC Input/Output Connectors: MIC/LINE: 4x XLR/JACK 6.3mm | AUX: 1x RCA L/R | MAIN IN: 1x RCA | PRE OUT: 1x RCA | OTHERS IN/OUT: screw terminals Power Consumption: 600VA Dimensioni (LxHxP): 420x340x88 mm – 2 rack units 19” Peso: 11.8 Kg (26.014 lb) Prodotto eccellente, realizzato con materiali di alta qualita' e pensato per durare nel tempo.
